7-contact, right-angle, female circular connector designed for MIL-DTL-5015 applications. Features a cadmium-plated aluminum alloy shell and body, with silver-plated copper alloy contacts. This free-hanging, cable-mount plug offers solder termination and operates within a temperature range of -55°C to 125°C.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS3108A18-9S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Brass |
| Contact Plating | Silver |
| Gender | Female |
| Length | 66.39mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-5015 Type |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 18 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3108A18-9S Datasheet
Download the complete datasheet for Amphenol MS3108A18-9S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

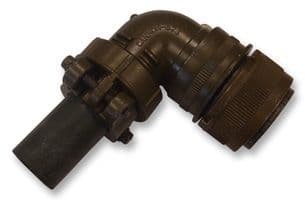

Product Images
