Technical Specifications
Amphenol MUSBD51100 technical specifications.
General
| Contact Material | Copper Alloy, Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Packaging | Tray |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MUSB |
| Termination | Solder |
| USB Standard | USB 2.0 |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol MUSBD51100 Datasheet
Download the complete datasheet for Amphenol MUSBD51100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

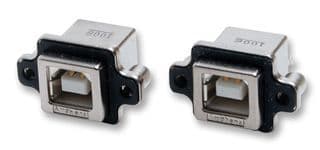

Product Images
