Amphenol
N6121A1-NT3G-1-50
Female RF Coaxial Connector, 50R Impedance, 11GHz Max Frequency, Crimp Termination
This female RF coaxial connector features a 50R impedance and a maximum frequency of 11GHz. It has a brass material construction with a bronze contact and gold-copper plating. The connector is designed for cable mount applications and has a straight orientation. It is not radiation hardened and is not compliant with Reach SVHC or RoHS regulations.
Frequency11GHz
MountingCable
Quick Jump:
Technical Specifications
Amphenol N6121A1-NT3G-1-50 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold, Copper |
| Gender | Female |
| Impedance | 50R |
| Insulation Material | PTFE |
| Material | Brass |
| Max Frequency | 11GHz |
| Mount | Cable |
| Orientation | Straight |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | Crimp |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol N6121A1-NT3G-1-50 Datasheet
Download the complete datasheet for Amphenol N6121A1-NT3G-1-50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

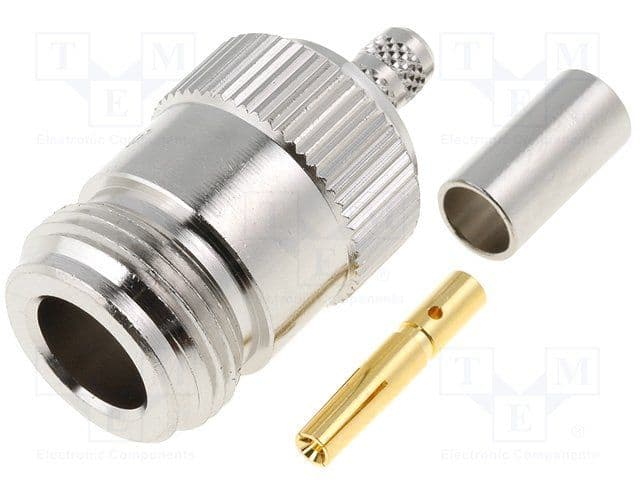

Product Images
