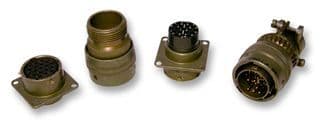

18-position, male pin circular connector with straight orientation and solder termination. Features a 7.5A current rating and 600V voltage rating, constructed with an aluminum shell plated in cadmium and chromate. This MIL-DTL-26482 Series I compliant receptacle offers a temperature range of -55°C to 125°C and is designed for wall mounting with flanges. Contacts are copper alloy with gold plating, suitable for wire gauges 20-24AWG.
Voltage Rating600V
Current Rating7.5A
MountingPanel, Flanges, Wall
Quick Jump:
Technical Specifications
Amphenol PT00A-14-18P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Wall |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Material | Aluminium |
| Shell Size | 14 |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
