Circular connector, receptacle, straight orientation, cable mount, free hanging. Features 3 positions with 3 contacts made of copper alloy with gold plating. Aluminum shell with cadmium plating, green color, and a straight solder termination. Operating temperature range from -55°C to 125°C.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT01P-8-3S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Depth | 20.62mm |
| Gender | Receptacle |
| Length | 36.52mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT01P-8-3S Datasheet
Download the complete datasheet for Amphenol PT01P-8-3S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

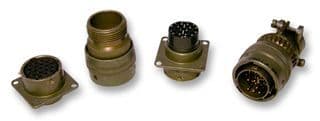

Product Images
