Circular connector, MIL-DTL-26482 Series I, featuring 3 male pin contacts with gold plating and solder termination. This receptacle offers a 13A current rating and 1kV voltage rating, with a straight, unshielded orientation. Constructed with an aluminum alloy shell and cadmium plating, it operates within a -55°C to 125°C temperature range and is panel/flange/box mountable.
PackageMetal
Voltage Rating1kV
Current Rating13A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02E-12-3P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 13A |
| Gender | Receptacle |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Sealed, Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 12 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 1kV |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT02E-12-3P Datasheet
Download the complete datasheet for Amphenol PT02E-12-3P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

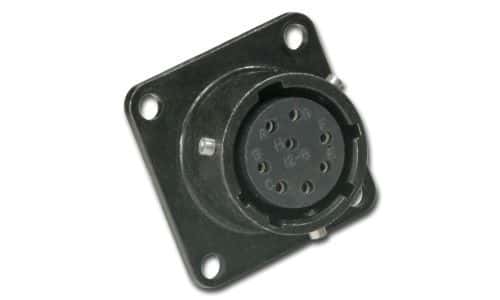

Product Images
