8-contact, male pin, solder terminal receptacle for MIL-DTL-26482 Series I applications. Features an aluminum alloy shell with cadmium plating, rated for 7.5A and 600V AC, operating between -55°C and 125°C. This environmentally sealed and resistant connector offers gold-plated copper alloy contacts and a rubber insulation material. Designed for panel or flange mounting with a straight orientation.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02E-12-8P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Military Standard | MIL-DTL-26482 |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate, Aluminium |
| Radiation Hardening | No |
| Ratings | Environment Sealed, Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 12 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT02E-12-8P Datasheet
Download the complete datasheet for Amphenol PT02E-12-8P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

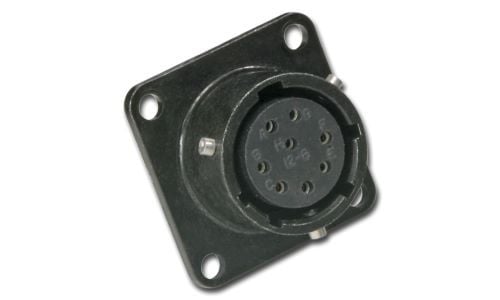

Product Images
