Amphenol
PT05A-18-11S
11-Contact Aluminium Receptacle Connector, 13A, -55°C to 125°C, MIL-DTL-26482 Series I, PT
This Aluminium receptacle connector features 11 contacts and a current rating of 13A. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The connector is part of the MIL-DTL-26482 Series I, PT series and is terminated with solder. It is available in a bulk packaging option.
Current Rating13A
MountingFree Hanging, Box
Quick Jump:
Technical Specifications
Amphenol PT05A-18-11S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 13A |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Box |
| Number of Contacts | 11 |
| Number of Positions | 11 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | MIL-DTL-26482 Series I, PT |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol PT05A-18-11S Datasheet
Download the complete datasheet for Amphenol PT05A-18-11S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

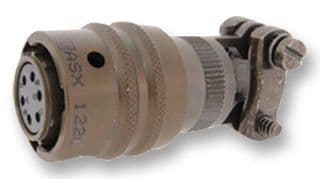

Product Images
