Circular connector with 5 male pin contacts, offering a 13A current rating and 1kV voltage rating. Features a straight, cable mount orientation with solder termination and a shell size of 14. Constructed with an aluminum body and shell, plated in cadmium and chromate, housing copper alloy contacts plated in gold. Rated for environmental resistance and operating temperatures from -55°C to 125°C, compliant with MIL-DTL-26482 standards.
Voltage Rating1kV
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06E-14-5P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 13A |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Material | Aluminium |
| Shell Size | 14 |
| Termination | Solder |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 1kV |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT06E-14-5P Datasheet
Download the complete datasheet for Amphenol PT06E-14-5P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

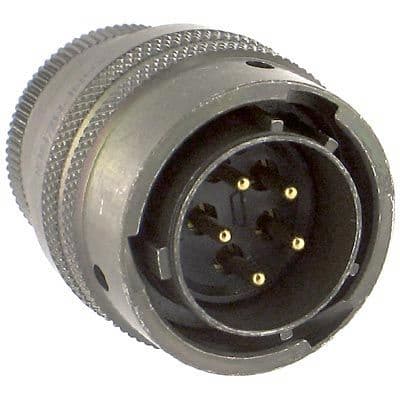

Product Images
