MIL-DTL-26482 Series I, PT circular connector, receptacle gender, featuring 4 male pin contacts with gold plating and solder termination. This straight, unshielded connector boasts a 7.5A current rating and 600V voltage rating, operating between -55°C and 125°C. Constructed with an aluminum alloy shell and cadmium plating, it supports wire gauges from 20AWG to 24AWG and offers panel, bulkhead, front side nut, and jam nut mounting options.
Voltage Rating600V
Current Rating7.5A
MountingPanel, Bulkhead, Front Side Nut, Jam Nut
Quick Jump:
Technical Specifications
Amphenol PT07A-8-4P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Bulkhead, Front Side Nut, Jam Nut |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT07A-8-4P Datasheet
Download the complete datasheet for Amphenol PT07A-8-4P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

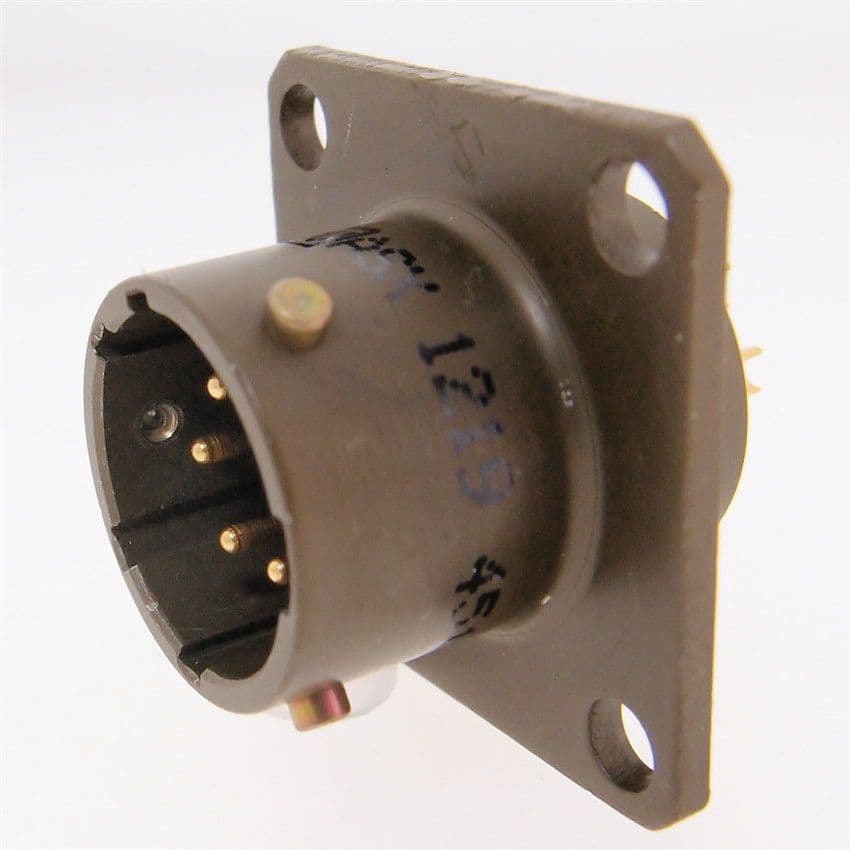

Product Images
