Technical Specifications
Amphenol RJF6N technical specifications.
General
| Package/Case | Metal |
| Color | Black, Silver |
| Depth | 34.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 57.8mm |
| Mating Cycles | 500 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Positions Loaded | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP68, IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | RJF |
| Shielding | Unshielded |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol RJF6N Datasheet
Download the complete datasheet for Amphenol RJF6N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

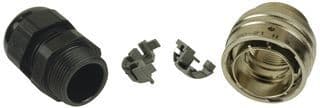

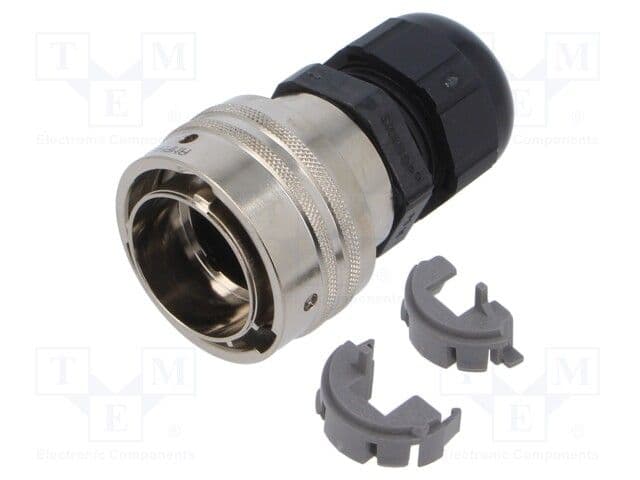

Product Images
