Rectangular receptacle connector featuring an RJ45 termination and 8 positions. This straight, female connector boasts a metal black housing with nickel contact plating and a flanged, panel mount design. Operating within a temperature range of -40°C to 85°C, it offers IP67, waterproof, and dust-tight ratings. The component is RoHS compliant and UL94 V-0 flammability rated.
PackageMetal
MountingFlanges, Panel
Quick Jump:
Technical Specifications
Amphenol RJFTV21N technical specifications.
General
Package/Case
Metal
Color
Black
Contact Plating
Nickel
Depth
36.53mm
Flammability Rating
UL94 V-0
Gender
Female
Lead Free
Lead Free
Length
43.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Flanges, Panel
Number of Contacts
8
Number of Ports
1
Number of Positions Loaded
8
Number of Ways
8
Orientation
Straight
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
RJF TV
Shielding
Unshielded
Termination
RJ45
Compliance
RoHS
Compliant
Datasheet
Amphenol RJFTV21N Datasheet
Download the complete datasheet for Amphenol RJFTV21N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

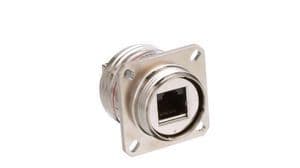

Product Images
