Rectangular connector receptacle featuring an RJ45 termination and 8 loaded positions. This straight, female connector boasts a metal package with nickel contact plating and a green color. Designed for panel mounting with flanges, it operates within a temperature range of -40°C to 85°C and offers IP67 and IP68 ratings for waterproof and dust-tight performance. The component exhibits UL94 V-0 flammability rating.
PackageMetal
MountingFlanges, Panel
Quick Jump:
Technical Specifications
Amphenol RJFTV2PE1G technical specifications.
General
Package/Case
Metal
Color
Green
Contact Plating
Nickel
Depth
36.53mm
Flammability Rating
UL94 V-0
Gender
Female
Lead Free
Lead Free
Length
92mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Flanges, Panel
Number of Contacts
8
Number of Ports
1
Number of Positions Loaded
8
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight, IP68
Reach SVHC Compliant
No
RoHS Compliant
No
Series
RJF TV
Shielding
Unshielded
Termination
RJ45
Compliance
RoHS
Not Compliant
Datasheet
Amphenol RJFTV2PE1G Datasheet
Download the complete datasheet for Amphenol RJFTV2PE1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

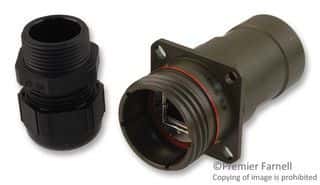

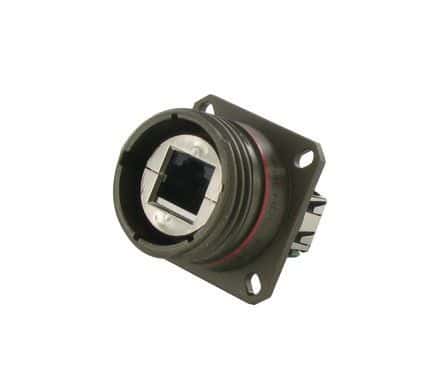

Product Images
