8-position, 16-loaded-position, 1-row modular connector with 2 ports. Features female, straight, right-angle orientation with solder terminal termination and a locking receptacle design. Offers a 1.5A current rating, 125V voltage rating, and operates between -20°C and 85°C. Constructed with gold-plated bronze contacts and a UL94 V-0 flammability rating. Shielded and RoHS compliant.
Voltage Rating125V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol RJHSE-5384-02 technical specifications.
General
Color
Black, Green, Yellow
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.5A
Direction
Up
Flammability Rating
UL94 V-0
Gender
Female
Lead Free
Lead Free
Length
32.26mm
Max Current Rating
1.5A
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
125V
Mount
Through Hole
Number of Contacts
8
Number of Ports
2
Number of Positions
8
Number of Positions Loaded
16
Number of Rows
1
Orientation
Right Angle
Package Quantity
56
Packaging
Tray
Pitch
2.03mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
RJHSE
Shielding
Shielded
Termination
Through Hole
Voltage Rating
125V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Amphenol RJHSE-5384-02 Datasheet
Download the complete datasheet for Amphenol RJHSE-5384-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

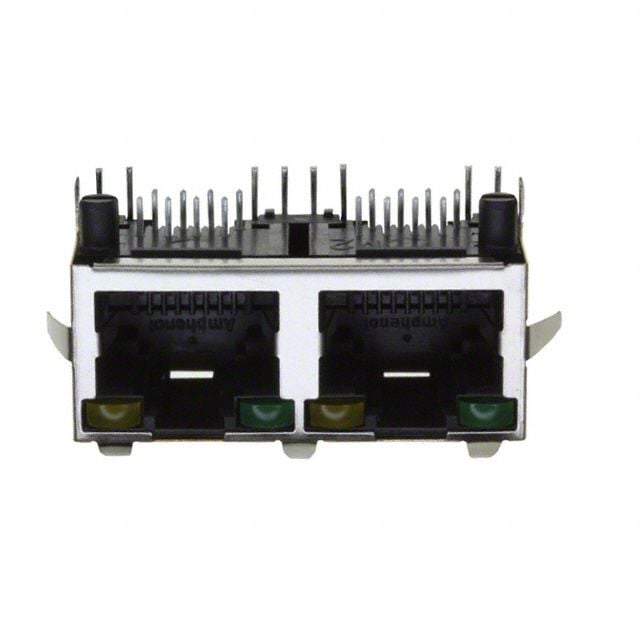

Product Images
