Technical Specifications

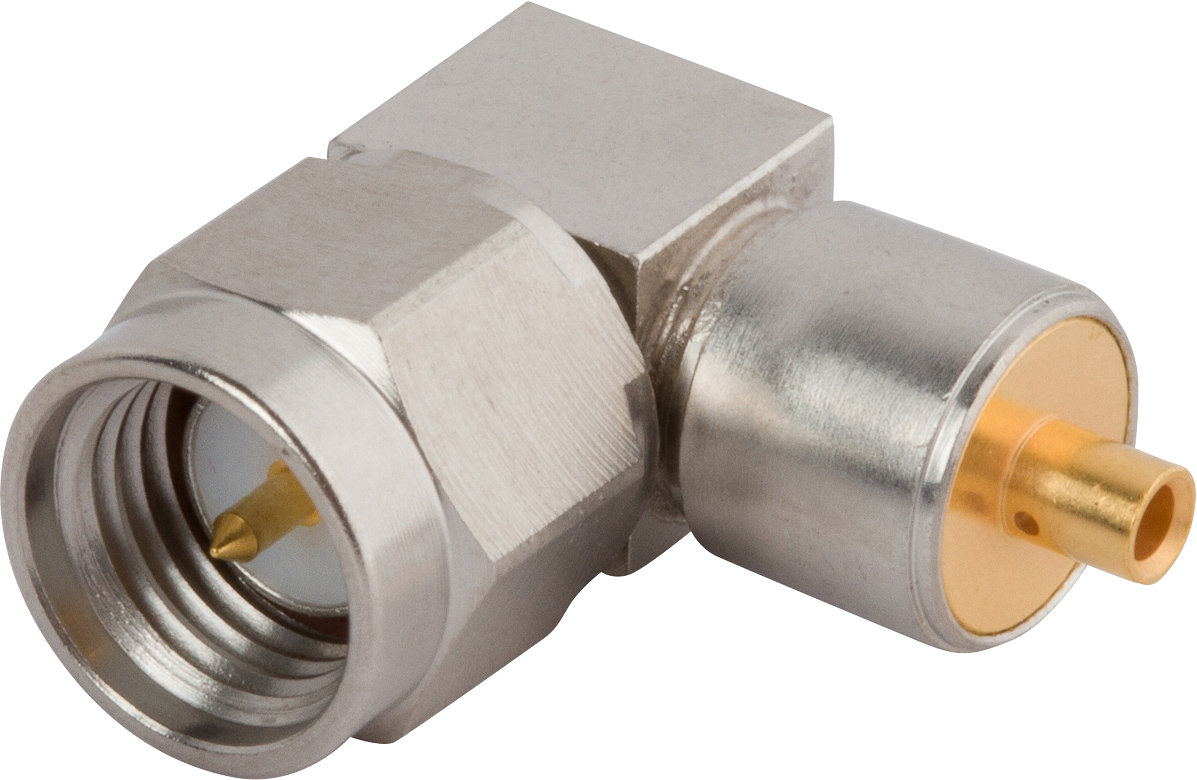

Amphenol SF2912-60955 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Gold |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Housing Color | Silver |
| Impedance | 50R |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Tray |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol SF2912-60955 Datasheet
Download the complete datasheet for Amphenol SF2912-60955 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
