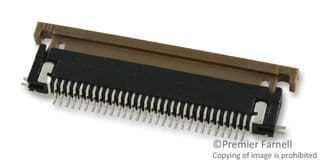

30-position, 0.5mm pitch, right-angle FFC/FPC connector with ZIF/LIF actuation. Features bottom contact location, bronze contacts with tin plating, and a glass/polyphenylene actuator. Rated for 50V AC/DC, 500mA current, and operates from -55°C to 85°C. Surface mountable with a solder termination, this black housing connector is UL94 V-0 flammability rated and supplied on tape and reel.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol SFV30R-1STE1LF technical specifications.
General
Actuator Material
Glass, Polyphenylene
Contact Location
Bottom
Contact Material
Bronze
Contact Plating
Tin
Current Rating
500mA
Depth
4.2mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Black
Lead Free
Lead Free
Length
20.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
5.05kV
Mount
Surface Mount
Number of Contacts
30
Number of Positions
30
Number of Rows
1
Orientation
Right Angle
Package Quantity
6000
Packaging
Tape and Reel
Pitch
0.5mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SFV-R
Termination
Solder
Voltage Rating
50V
DC Rated Voltage
50V
Width
4.9mm
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Amphenol SFV30R-1STE1LF Datasheet
Download the complete datasheet for Amphenol SFV30R-1STE1LF to view detailed technical specifications.
