10-contact, 1-row female receptacle with a 1mm pitch, designed for surface mount termination. Features bronze contacts with tin plating, a straight orientation, and a 1A current rating. Constructed with a glass and thermoplastic actuator material and a brown housing, this connector operates within a temperature range of -55°C to 105°C and has a maximum AC voltage rating of 100V. It is lead-free and UL94 V-0 flammability rated.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol SFW10S-2STME1LF technical specifications.
General
Actuator Material
Glass, Thermoplastic
Contact Location
Bottom
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
3.6mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Brown
Lead Free
Lead Free
Length
15.8mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
100V
Mount
Surface Mount
Number of Contacts
10
Number of Positions
10
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
Series
SFW-S
Termination
Solder
Voltage Rating
100V
Voltage Rating (AC)
100V
Width
3.6mm
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Amphenol SFW10S-2STME1LF Datasheet
Download the complete datasheet for Amphenol SFW10S-2STME1LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

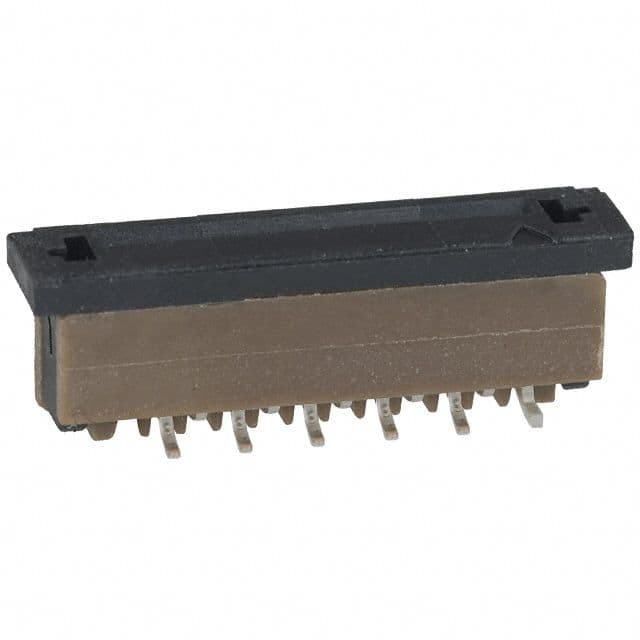

Product Images
