8-position, 1mm pitch FFC/FPC receptacle for surface mount applications. Features a right-angle orientation and bottom contact location with bronze contacts plated in tin. Rated for 1A current and 100V AC, with a maximum operating temperature of 105°C. Constructed with glass and polyphenylene actuator material and a brown housing, meeting UL94 V-0 flammability rating.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol SFW8R-1STE9LF technical specifications.
General
Actuator Material
Glass, Polyphenylene
Contact Location
Bottom
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
7.3mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Brown
Length
13.8mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
100V
Mount
Surface Mount
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Right Angle
Package Quantity
500
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
No
Series
SFW-R
Termination
Solder
Voltage Rating
100V
Voltage Rating (AC)
100V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Amphenol SFW8R-1STE9LF Datasheet
Download the complete datasheet for Amphenol SFW8R-1STE9LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

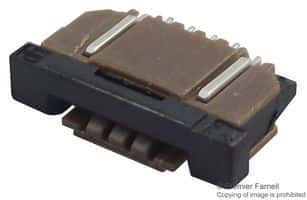

Product Images
