12-position, 1mm pitch FFC/FPC connector with straight, vertical PCB mounting. Features bottom contact location, bronze contacts with tin plating, and a 1A current rating. Operates within a -55°C to 85°C temperature range and supports up to 100V AC/DC. Housing is black Nylon, Glass, Polyamide with UL94 V-0 flammability. Lead-free and RoHS compliant.
Voltage Rating100V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol SLW12S-1C7LF technical specifications.
General
Actuator Material
Nylon, Glass, Polyamide
Contact Location
Bottom
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
4mm
Flammability Rating
UL94 V-0
Housing Color
Black
Lead Free
Lead Free
Length
18.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
100V
Max Voltage Rating (DC)
100V
Mount
Through Hole
Number of Contacts
12
Number of Positions
12
Number of Rows
1
Orientation
Straight
Package Quantity
140
Packaging
Tray
Pitch
1mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
SLW-S
Termination
Solder
Voltage Rating
100V
Voltage Rating (AC)
100V
Width
4mm
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Amphenol SLW12S-1C7LF Datasheet
Download the complete datasheet for Amphenol SLW12S-1C7LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

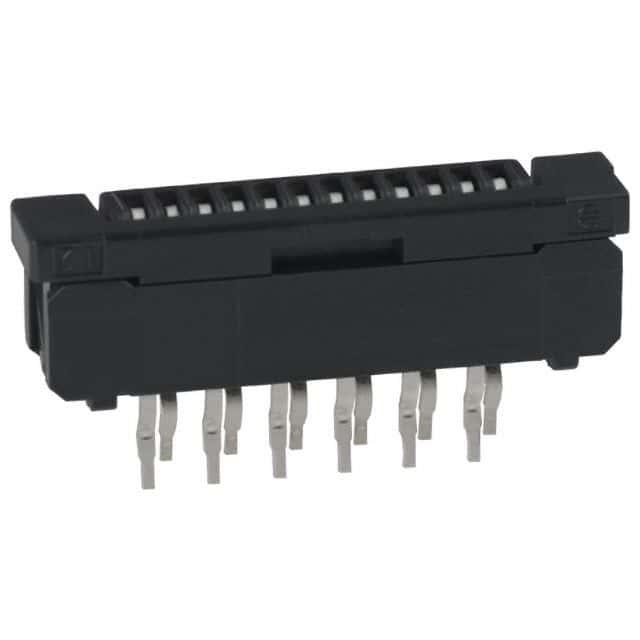

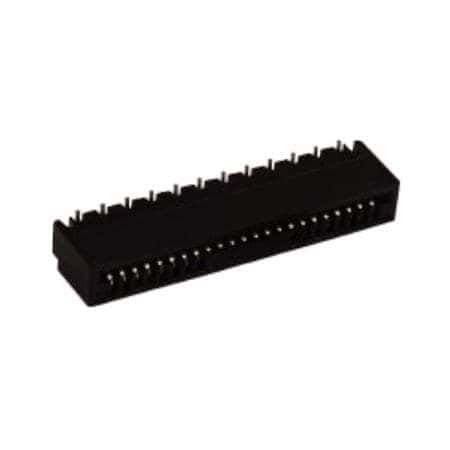

Product Images
