Technical Specifications
Amphenol T3400018 technical specifications.
General
| Approvals | UL, IEC |
| Body Material | Metal |
| Contact Gender | Male |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 5A |
| Dielectric Material | Thermoplastic |
| Features | Shielded |
| Gender | Male |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Plating | Nickel |
| Radiation Hardening | No |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | C 091 A |
| Termination | Solder |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol T3400018 Datasheet
Download the complete datasheet for Amphenol T3400018 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

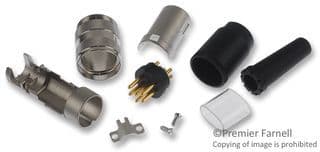

Product Images
