Circular DIN connector, straight male cable mount with 12 gold-plated solder pin contacts. Features a 3A current rating and 60V/150V DC voltage rating. Constructed with gold and CuZn contact material, thermoplastic dielectric, and nickel-plated shell. Operates within a -40°C to 100°C temperature range and offers IP40 environmental protection. Suitable for 24AWG wire/cable.
Voltage Rating60V
Current Rating3A
MountingFree Hanging
Quick Jump:
Technical Specifications
Amphenol T3635000 technical specifications.
General
Approvals
UL, IEC
Color
Silver
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Gold, CuZn
Contact Plating
Gold
Contact Type
Pin
Current Rating
3A
Dielectric Material
Thermoplastic
Gender
Male
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
12
Number of Positions
12
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Plating
Nickel
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
No
Series
C091A
Shell Finish
Nickel
Shell Plating
Nickel
Shielding
Shielded
Termination
Solder
Voltage Rating
60V
DC Rated Voltage
150V
Wire/Cable Gauge
24AWG
Compliance
RoHS
Not Compliant
Datasheet
Amphenol T3635000 Datasheet
Download the complete datasheet for Amphenol T3635000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

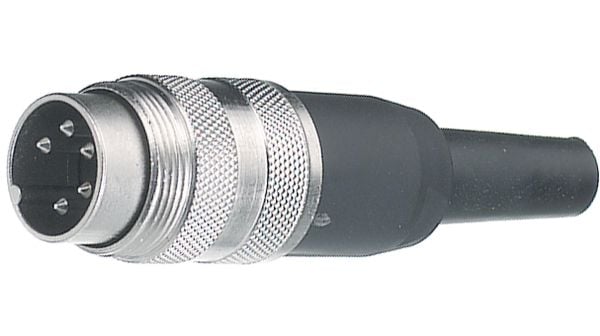

Product Images
