Ampire
AM-800480R3TMQW-A1H-F
Ampire AM-800480R3TMQW-A1H-F TFT LCD Colour Display 7in WVGA 800 x 480pixels
Quick Jump:
Technical Specifications
Ampire AM-800480R3TMQW-A1H-F technical specifications.
General
Backlight Type
LED
Brightness
500cd/m2
Contrast Ratio
400:1
Depth
6.76mm
Diagonal Size
7inch
Height
104.44mm
Interface
LVDS
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Operating Supply Voltage
3.6V
Resolution (height)
480pixel
Resolution (width)
800pixel
Response Time
16ms
Width
165mm
Compliance
RoHS
Compliant
Datasheet
Ampire AM-800480R3TMQW-A1H-F Datasheet
Download the complete datasheet for Ampire AM-800480R3TMQW-A1H-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

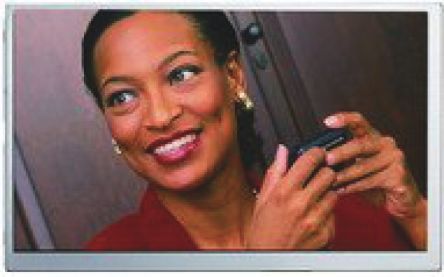

Product Images
