Positive adjustable linear voltage regulator, 100mA output current, 300mV dropout voltage, and 40µA quiescent current. Features a wide input voltage range from 1.6V to 45V, with an adjustable output voltage from 0.6V to 44.5V. Offers 2% output voltage accuracy and 85dB PSRR. Operates across a temperature range of -40°C to 125°C in an 8-pin DFN package, supplied on tape and reel.
PackageDFN
PolarityPositive
Quick Jump:
Technical Specifications
Analog Devices LT3060EDC#TRMPBF technical specifications.
General
Package/Case
DFN
Dropout Voltage
300mV
Min Current Limit
110mA
Max Input Voltage
45V
Min Input Voltage
1.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
44.5V
Min Output Voltage
600mV
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
40uA
Output Current
100mA
Output Voltage
44.5V
Output Voltage Accuracy
2%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
85dB
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3060EDC#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3060EDC#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

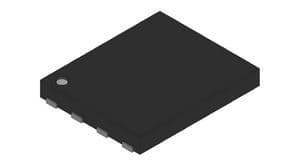

Product Images
