Boost (step-up) LED driver IC with one output, capable of 42V/300mA from a 2.5V to 12V input. Features a 1.2MHz switching frequency and a compact DFN-8 package (3mm x 2mm x 0.7mm) suitable for SMD/SMT termination. Operates across a wide temperature range of -40°C to 85°C, with a maximum supply current of 5mA. This RoHS compliant component is supplied on tape and reel.
Frequency1.2MHz
PackageDFN
Current5A
Quick Jump:
Technical Specifications
Analog Devices LT3591EDDB#TRMPBF technical specifications.
General
Package/Case
DFN
Frequency
1.2MHz
Height
0.7mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
12V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
12V
Min Supply Voltage
2.5V
Number of Outputs
1
Number of Segments
10
Output Current
300mA
Output Voltage
42V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5A
Termination
SMD/SMT
Topology
Boost
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices LT3591EDDB#TRMPBF Datasheet
Download the complete datasheet for Analog Devices LT3591EDDB#TRMPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

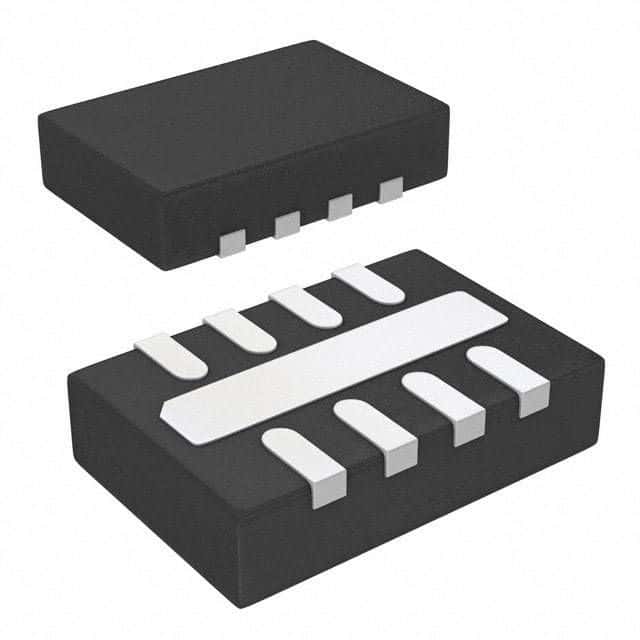

Product Images
