Dual-output DC-DC converter with adjustable and fixed output types, capable of delivering up to 4A per channel. Features a wide input voltage range from 2.375V to 5.5V and configurable output voltages from 800mV to 5V. Achieves up to 95% efficiency, operating across a temperature range of -40°C to 125°C. Housed in a compact LGA package, this lead-free component is supplied in tray packaging.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM4614IV#PBF technical specifications.
General
Package/Case
LGA
Efficiency
95%
Height
0.11inch
Lead Free
Lead Free
Length
0.59inch
Max Input Voltage
5.5V
Min Input Voltage
2.375V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
5V
Min Output Voltage
800mV
Number of Outputs
2
Output Current
4A
Output Type
Adjustable, Fixed
Output Voltage
1.49V
Package Quantity
119
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
5V
Voltage - Output 2
5V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM4614IV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM4614IV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

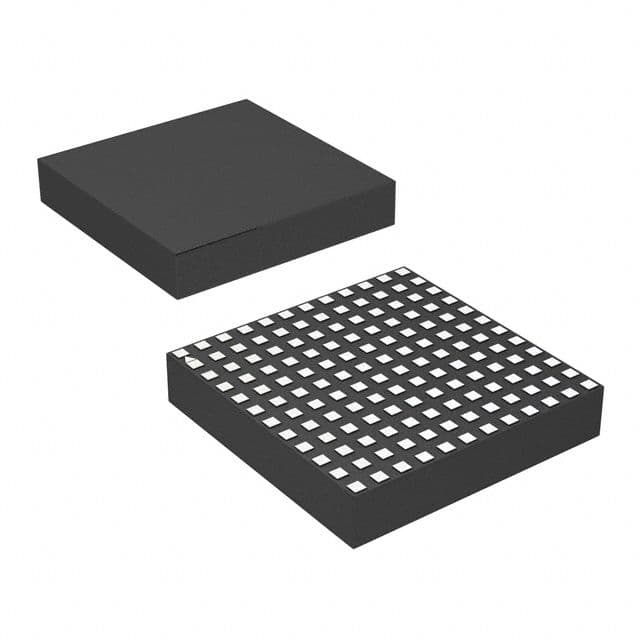

Product Images
