Adjustable DC-DC converter with a 4V to 36V input range, delivering up to 200mA output current. Features a 1.2V to 5V adjustable output voltage and a single output. This board mount component operates from -40°C to 85°C with a low 10µA operating supply current. Packaged in an LGA with dimensions of 0.25 x 0.25 x 0.09 inches, it is RoHS compliant.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM8020EV#PBF technical specifications.
General
Package/Case
LGA
Height
0.09inch
Lead Free
Lead Free
Length
0.25inch
Max Input Voltage
36V
Min Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
5V
Min Output Voltage
1.2V
Number of Outputs
1
Operating Supply Current
10uA
Output Current
200mA
Output Type
Adjustable
Output Voltage
5V
Package Quantity
260
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
5V
Width
0.25inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8020EV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8020EV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

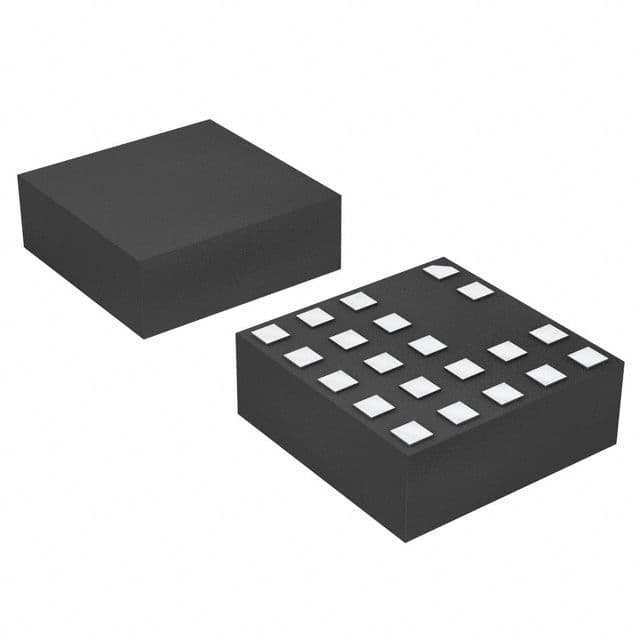

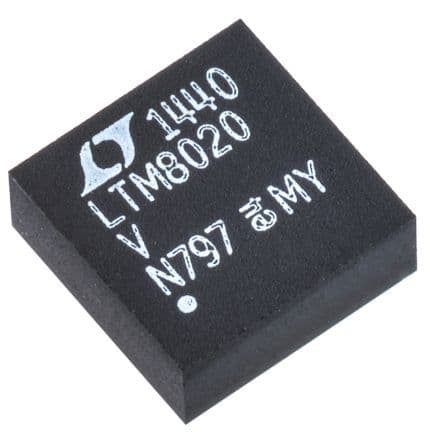

Product Images
