3A, 36V input, 24V output DC/DC converter module. Features a 3.6V to 36V input voltage range and a 0.8V to 24V adjustable output voltage. This surface mount component offers a maximum output current of 3A and a maximum power dissipation of 72W. Operating temperature range is -40°C to 125°C.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices LTM8025EY#PBF technical specifications.
General
Package/Case
BGA
Height
0.19inch
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
24V
Min Output Voltage
800mV
Max Power Dissipation
72W
Mount
Surface Mount
Number of Outputs
1
Output Current
3A
Output Voltage
24V
Package Quantity
170
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LTM®, uModule®
Voltage - Output 1
24V
Width
0.35inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8025EY#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8025EY#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

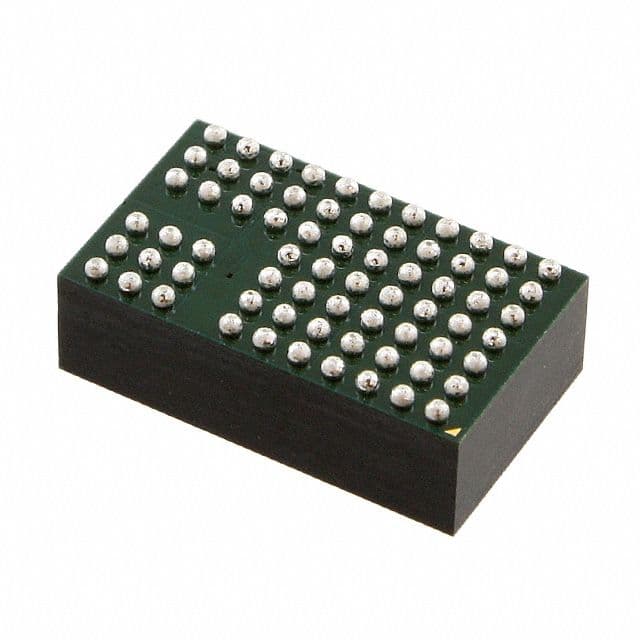

Product Images
