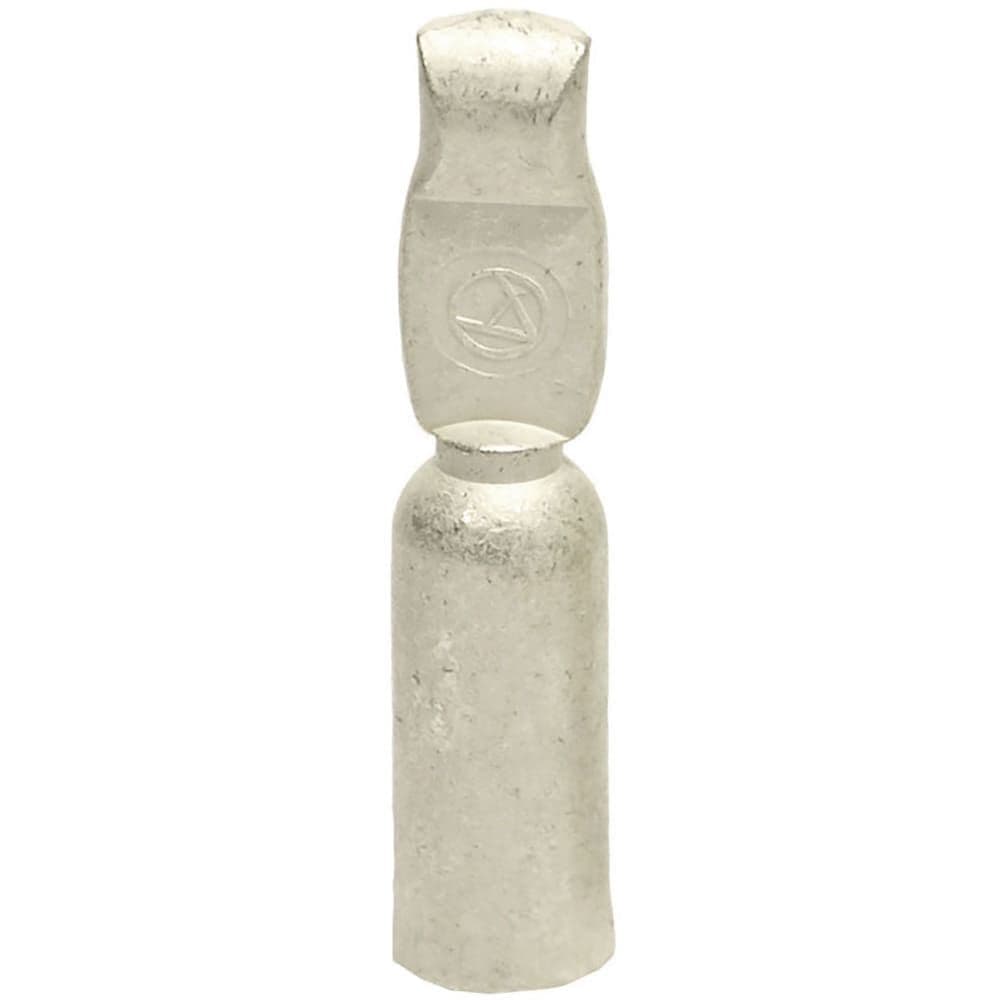

Connector accessory for cable mounting, featuring a non-gendered contact type made from silver-plated copper alloy. Rated for 75A continuous current and 600V, this component utilizes crimp termination and is designed for 8AWG wire. RoHS and REACH compliant.
Voltage Rating600V
Current Rating75A
MountingCable
Quick Jump:
Technical Specifications
Anderson Power 5952-BK technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Contact Type | Non-Gendered |
| Current Rating | 75A |
| Mount | Cable |
| RoHS Compliant | Yes |
| Series | Powerpole® |
| Termination | Crimp |
| Voltage Rating | 600V |
| Wire/Cable Gauge | 8AWG |
Compliance
| RoHS | Compliant |
Datasheet
Anderson Power 5952-BK Datasheet
Download the complete datasheet for Anderson Power 5952-BK to view detailed technical specifications.
No datasheet is available for this part.
Product Images
