Surface mount IC socket featuring 8 contacts with gold-plated copper contacts for superior conductivity. This component offers a 2.54mm pitch and 7.62mm row spacing, with a current rating of 3A. Operating across a wide temperature range from -55°C to 105°C, it boasts a UL94 V-0 flammability rating and is RoHS compliant. Termination is via solder, and the socket has dimensions of 10.16mm length, 3.71mm width, and 10.16mm depth.
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Aries Electronics 08-3518-00 technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Copper
Contact Plating
Gold
Current Rating
3A
Depth
10.16mm
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
8
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
7.62mm
Series
518
Termination
Solder
Width
3.71mm
Compliance
RoHS
Compliant
Datasheet
Aries Electronics 08-3518-00 Datasheet
Download the complete datasheet for Aries Electronics 08-3518-00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

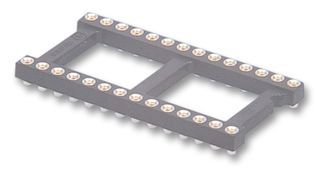

Product Images
