Voltage Rating30V
Current Rating1A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
Assmann A-USBA-E technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1A
Depth
19.25mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Insulation Color
White
Lead Free
Lead Free
Length
7.2mm
Mating Cycles
1500
Max Current Rating
1.5A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, Vertical
Number of Contacts
4
Number of Ports
1
Orientation
Right Angle
Packaging
Tray
Pitch
2mm
Termination
Solder
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Assmann A-USBA-E Datasheet
Download the complete datasheet for Assmann A-USBA-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

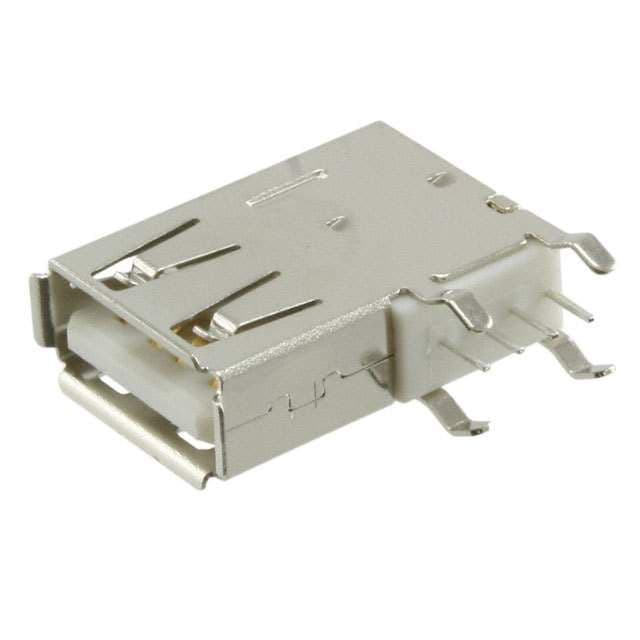

Product Images
