Technical Specifications
Assmann AR16-ST/T technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 3A |
| Length | 20.32mm |
| Material | PBT |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Orientation | Straight |
| Pitch | 2.54mm |
| Voltage Rating | 100V |
| Width | 10.16mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Assmann AR16-ST/T Datasheet
Download the complete datasheet for Assmann AR16-ST/T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

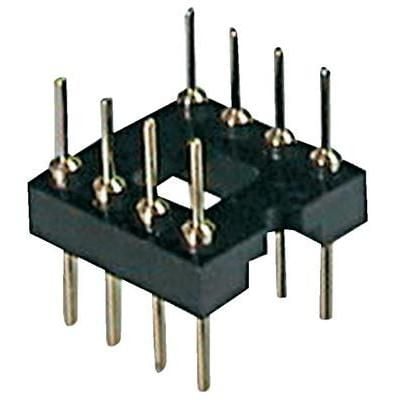

Product Images
