6-position, 6-contact horizontal RJ11 modular connector with a 1.27mm pitch. Features copper alloy contacts with gold plating, rated for 500mA and 5V. This surface mount, right-angle connector is designed for tape and reel packaging and is RoHS compliant. Its compact 2.4mm height and 26.5mm length make it suitable for space-constrained applications.
Voltage Rating5V
Current Rating500mA
MountingSurface Mount, Standard
Quick Jump:
Technical Specifications
AVX 055036006202862+ technical specifications.
General
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
500mA
Height
2.4mm
Lead Free
Lead Free
Length
26.5mm
Max Current Rating
500mA
Mount
Surface Mount, Standard
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Horizontal
Package Quantity
1
Packaging
Tape and Reel
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
5036, Kyocera
Termination
SMD/SMT
Voltage Rating
5V
Compliance
RoHS
Compliant
Datasheet
AVX 055036006202862+ Datasheet
Download the complete datasheet for AVX 055036006202862+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

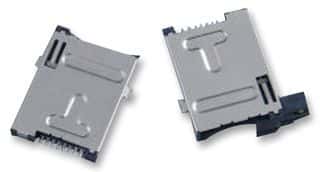

Product Images
