Technical Specifications
BEL 125-2701-201 technical specifications.
General
| Body Material | Copper, Brass |
| Body Plating | Gold |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 40GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Mating Cycles | 500 |
| Max Frequency | 40GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Polarity | Standard |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 325V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 125-2701-201 Datasheet
Download the complete datasheet for BEL 125-2701-201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

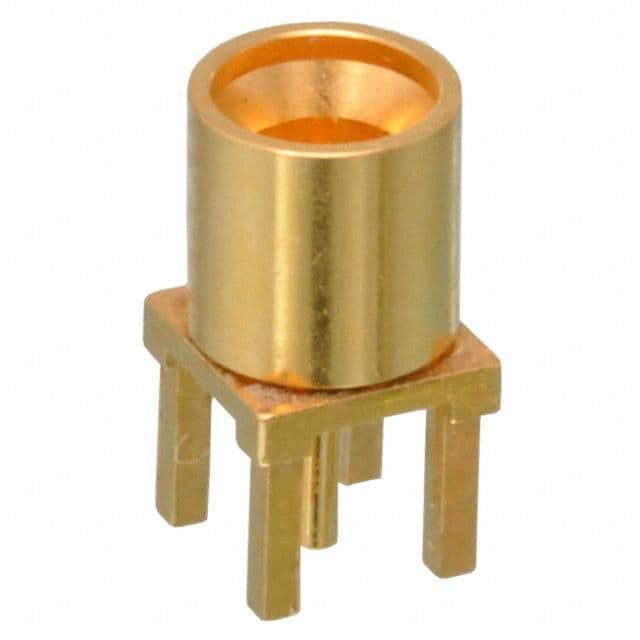

Product Images
