RF MCX connector, male, right angle, cable mount, crimp termination. Features 50 Ohm impedance, 6GHz maximum frequency, and 500 mating cycles. Constructed with brass body and contacts, gold plating, and PTFE dielectric. Rated for 335V, operating from -65°C to 165°C, with 0.2dB insertion loss.
Frequency6GHz
Package316
Voltage Rating335V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
BEL 133-3403-101 technical specifications.
General
| Body Material | Brass |
| Body Plating | Gold |
| Package/Case | 316 |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 6GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50R |
| Insertion Loss | 0.2dB |
| Mating Cycles | 500 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Right Angle |
| Package Quantity | 25 |
| Packaging | Bulk |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MCX |
| Termination | Crimp |
| Voltage Rating | 335V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 133-3403-101 Datasheet
Download the complete datasheet for BEL 133-3403-101 to view detailed technical specifications.
No datasheet is available for this part.

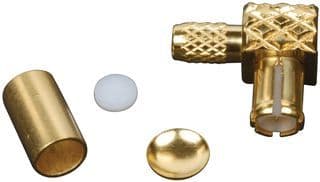

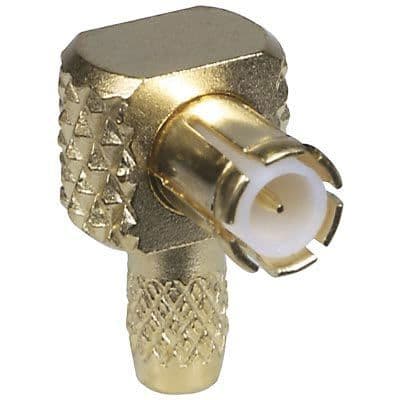

Product Images
