BEL
50-30A-30

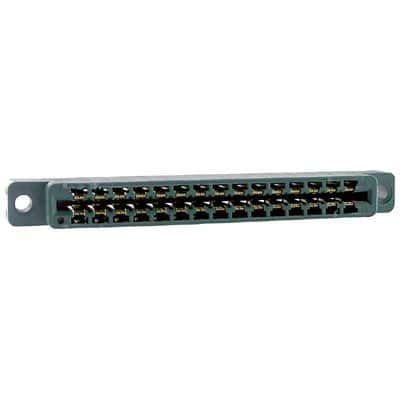

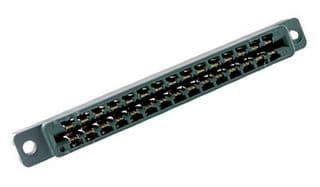

Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .125-.137, Green Insulator,
MountingPanel
Quick Jump:
Technical Specifications
BEL 50-30A-30 technical specifications.
General
Card Thickness
1.8mm
Color
Green
Contact Material
Brass
Contact Plating
Gold
Contact Type
Bifurcated Semi Bellows
Gender
Female
Insulation Material
Glass
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Panel
Number of Contacts
30
Number of Positions
30
Number of Rows
2
Package Quantity
1000
Reach SVHC Compliant
No
RoHS Compliant
No
Row Spacing
5.08mm
Termination
Solder
Compliance
RoHS
Not Compliant
Datasheet
BEL 50-30A-30 Datasheet
Download the complete datasheet for BEL 50-30A-30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
