BEL
FC9ST-LF
CINCH FC9ST-LF Standard D Sub Connector, DE, Receptacle, 9 Contacts, Steel Body, IDC / IDT
Resistance0.015R
Quick Jump:
Technical Specifications
BEL FC9ST-LF technical specifications.
General
Body Material
Steel, Metal
Contact Current Rating
1A
Contact Material
Copper
Contact Plating
Gold
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Pitch
2.76mm
Material
Steel
Mating Cycles
250
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Number of Contacts
9
Reach SVHC Compliant
No
Resistance
0.015R
Series
FC
Termination
IDC
Voltage Rating (AC)
350V
DC Rated Voltage
350V
Wire/Cable Gauge
26AWG
Compliance
RoHS
Compliant
Datasheet
BEL FC9ST-LF Datasheet
Download the complete datasheet for BEL FC9ST-LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

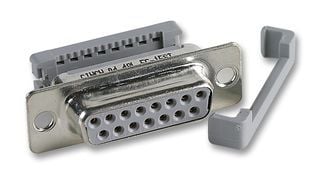

Product Images
