Shielded, right-angle RJ45 connector with 8 positions and 1 port. Features a 2.54mm pitch, 1.27mm contact pitch, and 4 cores per jack. Constructed with a copper alloy contact material and gold plating, this female connector offers through-hole mounting and solder termination. Operates within a temperature range of -40°C to 85°C and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL SI-60182-F technical specifications.
General
Color
Green, Yellow
Contact Material
Copper Alloy
Contact Plating
Gold
Direction
Down
Gender
Female
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
8
Number of Cores per Jack
4
Number of Ports
1
Number of Rows
1
Orientation
Right Angle
Packaging
Tray
Pitch
2.54mm
RoHS Compliant
Yes
Series
MagJack® ST SI-60000
Shielding
Shielded
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
BEL SI-60182-F Datasheet
Download the complete datasheet for BEL SI-60182-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

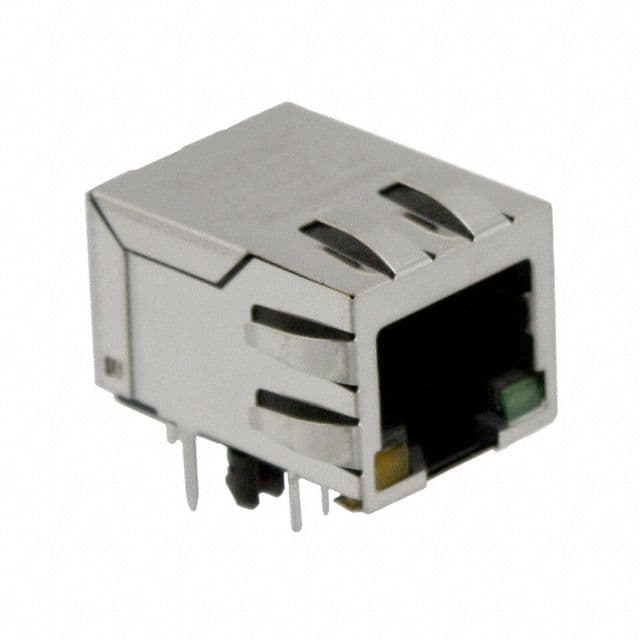

Product Images
