Belden
7805R 008100

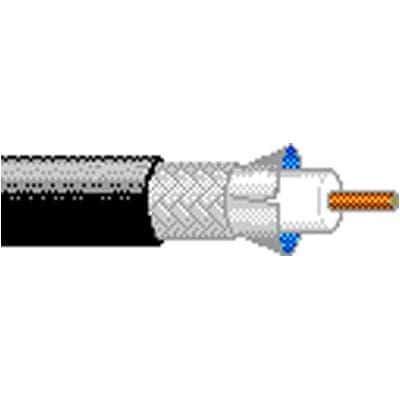

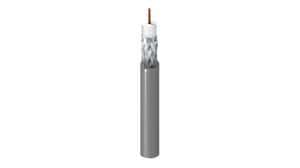

Coaxial Cable Tape/Braid Foam High Density Polyethylene 24.5AWG 2.79mm 300VAC Gray 30.48m
MountingCable
Quick Jump:
Technical Specifications
Belden 7805R 008100 technical specifications.
General
Approvals
UL, CE, NEC
Color
Grey
Conductor Material
Copper
Impedance
50R
Jacket Material
PVC
Length
100foot
Max Operating Temperature
75°C
Mount
Cable
Outside Diameter
2.794mm
Package Quantity
2
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Voltage Rating (AC)
300V
Weight
1.7lb
Wire/Cable Gauge
24.5AWG
Compliance
RoHS
Compliant
Datasheet
Belden 7805R 008100 Datasheet
Download the complete datasheet for Belden 7805R 008100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
