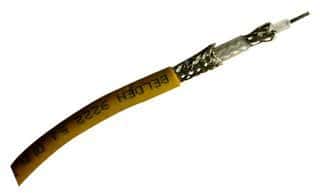

50 Ohm coaxial cable featuring a 20AWG stranded copper conductor with 7 strands. This shielded cable utilizes a polyethylene dielectric and PVC insulation and jacket, offering a characteristic impedance of 50 Ohms. With a maximum operating temperature of 75°C and a minimum of -40°C, it is supplied on a 100-foot spool and is RoHS compliant.
Capacitance101.024pF
MountingCable
Quick Jump:
Technical Specifications
Belden 9222 004100 technical specifications.
General
Approvals
CE
Capacitance
101.024pF
Characteristic Impedance
50R
Color
Yellow
Conductor Material
Copper
Dielectric Material
PE
Impedance
50R
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Strands
7
Outside Diameter
0.24inch
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 28
Weight
4.6lb
Wire/Cable Gauge
20AWG
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
Belden 9222 004100 Datasheet
Download the complete datasheet for Belden 9222 004100 to view detailed technical specifications.
