5-conductor, 20AWG multi-conductor cable featuring copper conductors with 7x28 stranding. Insulated and jacketed with PVC, this unshielded cable has a 6.07mm outside diameter and a 300VAC voltage rating. Operating temperature range is -20°C to 80°C. Approvals include UL, CE, and NEC. Supplied on a 30.48m spool.
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Belden 9445 060100 technical specifications.
General
| Approvals | UL, CE, NEC |
| Color | Chrome |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 5 |
| Number of Cores | 5 |
| Outside Diameter | 6.071mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Stranding | 7 x 28 |
| Voltage Rating | 300V |
| Weight | 4.4lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Belden 9445 060100 Datasheet
Download the complete datasheet for Belden 9445 060100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

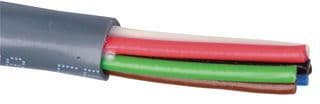

Product Images
