Technical Specifications

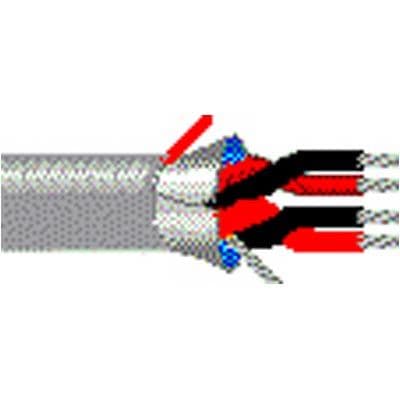

Belden 9512060500 technical specifications.
General
Approvals
UL, CE, NEC
Color
Chrome
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
500foot
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Conductors
4
Number of Pairs
2
Outside Diameter
7.87mm
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 30
Voltage Rating
300V
DC Rated Voltage
300V
Weight
22lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Pair, Twisted Pair
Compliance
RoHS
Compliant
Datasheet
Belden 9512060500 Datasheet
Download the complete datasheet for Belden 9512060500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
