Voltage Rating125V
Current Rating4A
MountingPanel
Quick Jump:
Technical Specifications
Binder 09-0082-00-04 technical specifications.
General
Body Material
Nylon, Polyamide
Contact Gender
Female
Contact Material
Brass, Bronze, Gold, CuZn
Contact Plating
Gold
Current Rating
4A
Flammability Rating
UL94 HB
Gender
Receptacle
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Contacts
4
Orientation
Straight
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
711
Termination
Solder
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
4mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Binder 09-0082-00-04 Datasheet
Download the complete datasheet for Binder 09-0082-00-04 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

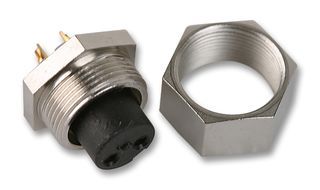

Product Images
