Technical Specifications
Binder 09 0320 00 05 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Contact Material | Bronze, Silver, CuZn |
| Contact Plating | Silver |
| Current Rating | 5A |
| Gender | Receptacle |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Contacts | 5 |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 680 |
| Termination | Solder |
| Voltage Rating (AC) | 60V |
| Wire/Cable Diameter | 6mm |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Binder 09 0320 00 05 Datasheet
Download the complete datasheet for Binder 09 0320 00 05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

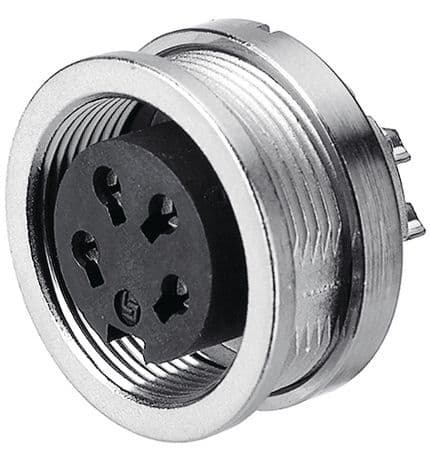

Product Images
