Technical Specifications
Binder 99.5614.15.05 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass, Silver, CuSn |
| Contact Plating | Silver |
| Current Rating | 6A |
| Max Operating Temperature | 95°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Contacts | 5 |
| Orientation | Straight |
| Ratings | IP67 |
| Series | 423 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
Binder 99.5614.15.05 Datasheet
Download the complete datasheet for Binder 99.5614.15.05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

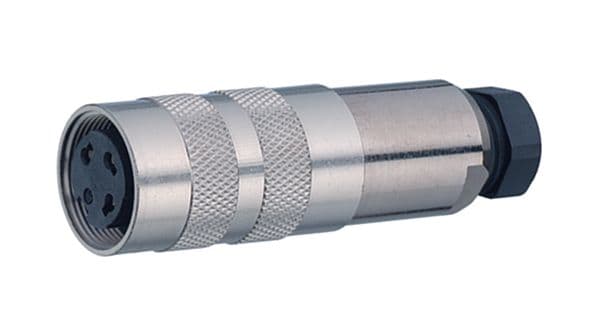

Product Images
