Technical Specifications
Bivar SM0603URC technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Red |
| Forward Current | 20mA |
| Height | 0.6mm |
| Illumination Color | Red |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Style | Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 55mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 660nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Bivar SM0603URC Datasheet
Download the complete datasheet for Bivar SM0603URC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

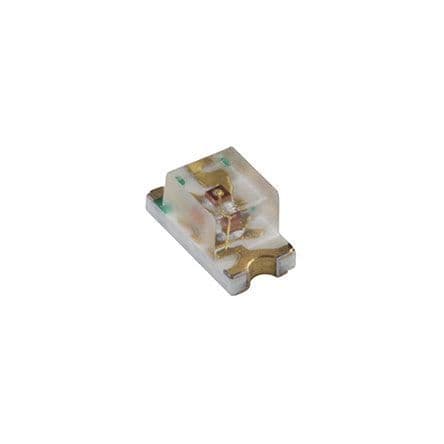

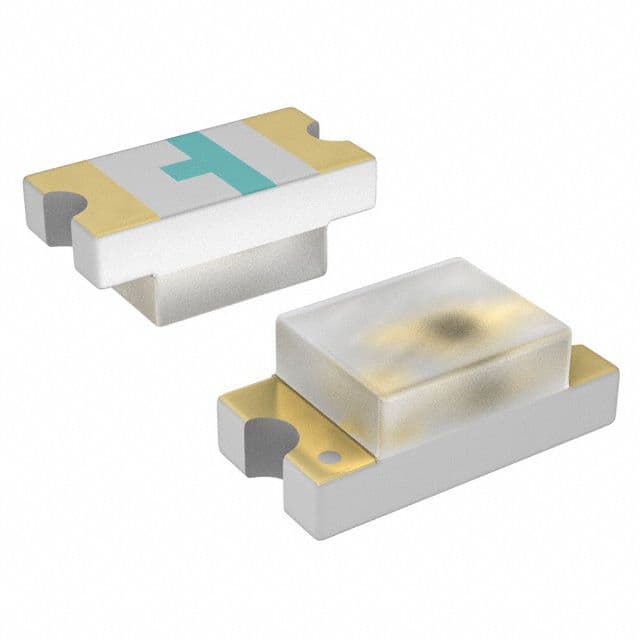

Product Images
