Package1408
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns CD1408-FU1800 technical specifications.
General
Average Rectified Current
1A
Package/Case
1408
Contact Plating
Tin
Forward Current
1A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
800V
Max Surge Current
25A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
25A
Reverse Recovery Time
35ns
Reverse Voltage
800V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Bourns CD1408-FU1800 Datasheet
Download the complete datasheet for Bourns CD1408-FU1800 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

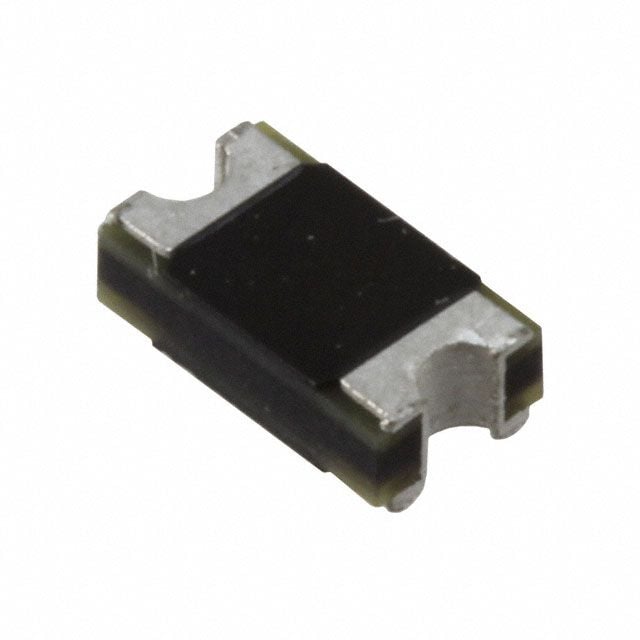

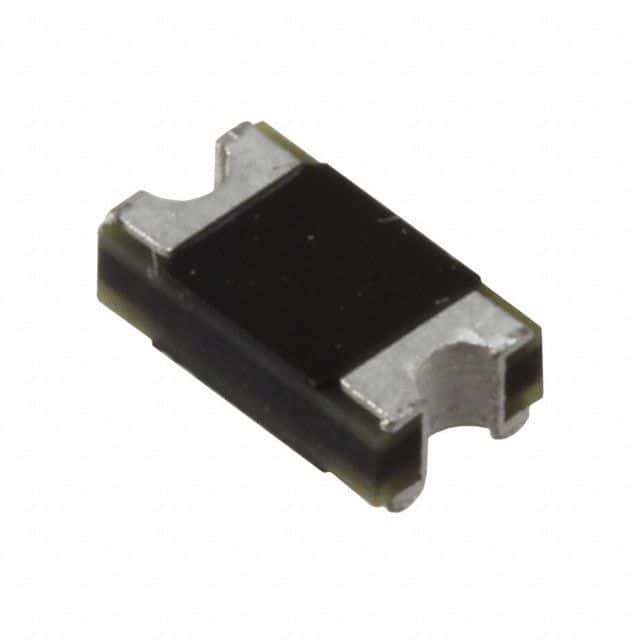

Product Images
