PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-021L-500E technical specifications.
General
Package/Case
SOIC
Direction
Unidirectional
Fall Time
0.011us
Input Current
8mA
Input Type
DC
Isolation Voltage
3.75kV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
10mA
Output Type
PUSH-PULL
Output Voltage
7V
Package Quantity
1500
Packaging
Tape and Reel
Propagation Delay
250ns
Reach SVHC Compliant
No
Turn-On Delay Time
250ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-021L-500E Datasheet
Download the complete datasheet for Broadcom ACPL-021L-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

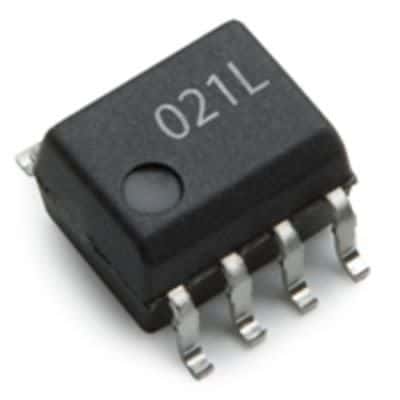

Product Images
