General purpose transistor output optocoupler featuring 3kV isolation voltage and 80V collector-emitter breakdown voltage. This single-channel device offers a 600% current transfer ratio with a 20mA input current and 50mA maximum output current. Designed for surface mount applications, it operates within a temperature range of -55°C to 110°C and is RoHS compliant. Approvals include UL, CSA, and VDE.
PackageSO
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom ACPL-217-56AE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SO
Collector Emitter Breakdown Voltage
80V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
600%
Forward Current
50mA
Input Current
20mA
Input Type
DC
Isolation Voltage
3kV
Isolation Voltage-Max
3kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
80V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
80V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-217-56AE Datasheet
Download the complete datasheet for Broadcom ACPL-217-56AE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

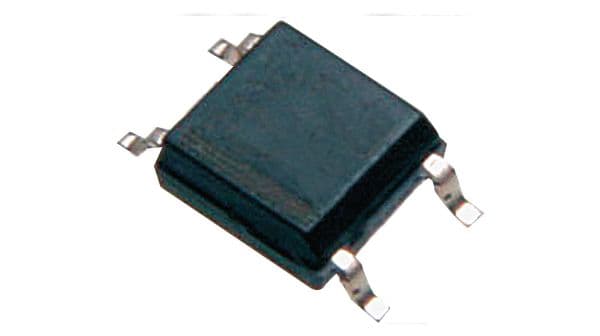

Product Images
