High-speed, logic-output optocoupler featuring a unidirectional DC input and a totem-pole output. This single-channel device offers a 3.75kV isolation voltage and a 150ns propagation delay. Designed for surface mounting in an SOIC package, it operates within a temperature range of -40°C to 105°C and supports a forward current of 10mA with a 7mA input current. Approvals include UL, CSA, and IEC, with RoHS compliance.
PackageSOIC
MountingSurface Mount
Power210mW
Quick Jump:
Technical Specifications
Broadcom ACPL-P484-000E technical specifications.
General
Approvals
UL, CSA, IEC
Package/Case
SOIC
Direction
Unidirectional
Fall Time
6ns
Forward Current
10mA
Input Current
7mA
Input Type
DC
Isolation Voltage
3.75kV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Power Dissipation
210mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
50mA
Output Current per Channel
50mA
Output Type
TOTEM POLE
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
210mW
Propagation Delay
150ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
150ns
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-P484-000E Datasheet
Download the complete datasheet for Broadcom ACPL-P484-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

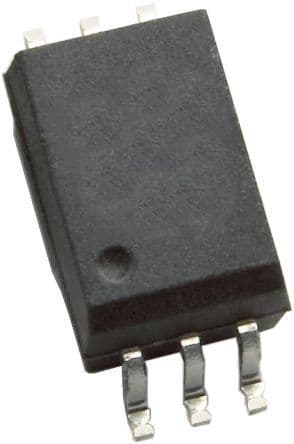

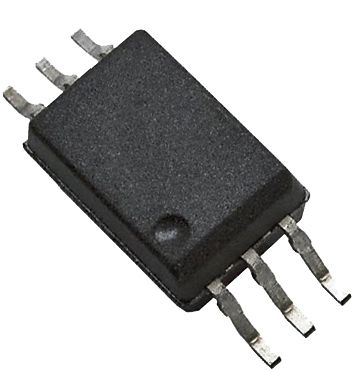

Product Images
