BROADCOM

ACSL-6300-00TE

Datasheet

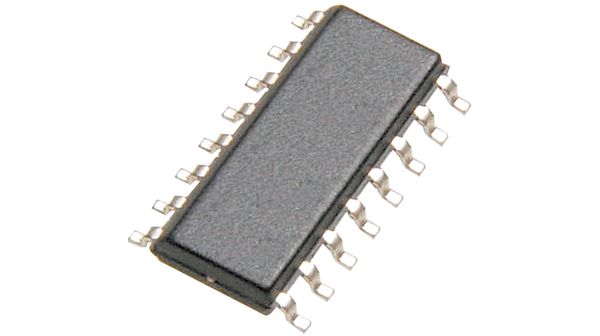

3-Ch Optocoupler, 2.5kV Isolation, 15Mbps, SOIC

Broadcom

ACSL-6300-00TE

Name: ACSL-6300-00TE Broadcom
Brand: Broadcom
SKU: ACSL-6300-00TE

3-Ch Optocoupler, 2.5kV Isolation, 15Mbps, SOIC

General purpose, 3-channel optocoupler featuring 2500V isolation and a 15Mbps data rate. Surface mountable in an SOIC package, this unidirectional component operates with a 15mA forward and input current, offering 50mA output current per channel. Key specifications include a 7V collector-emitter breakdown voltage, 100ns propagation delay, and a wide operating temperature range of -40°C to 100°C. Approvals include UL, CSA, and VDE, with RoHS compliance.

PackageSOIC

MountingSurface Mount

Power65mW

Quick Jump:

Technical Specifications

Broadcom ACSL-6300-00TE technical specifications.

General

Approvals	UL, CSA, VDE
Package/Case	SOIC
Collector Emitter Breakdown Voltage	7V
Data Rate	15Mbps
Direction	Unidirectional
Fall Time	12ns
Forward Current	15mA
Input Current	15mA
Input Type	DC
Isolation Voltage	2.5kV
Lead Free	Lead Free
Max Input Current	15mA
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Output Current	50mA
Max Output Voltage	7V
Max Power Dissipation	40mW
Max Supply Voltage	5.5V
Min Supply Voltage	3V
Mount	Surface Mount
Number of Channels	3
Number of Elements	3
Output Current	50mA
Output Current per Channel	50mA
Package Quantity	50
Packaging	Rail/Tube
Power Dissipation	65mW
Propagation Delay	100ns
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
RoHS Compliant	Yes
Turn-On Delay Time	100ns
